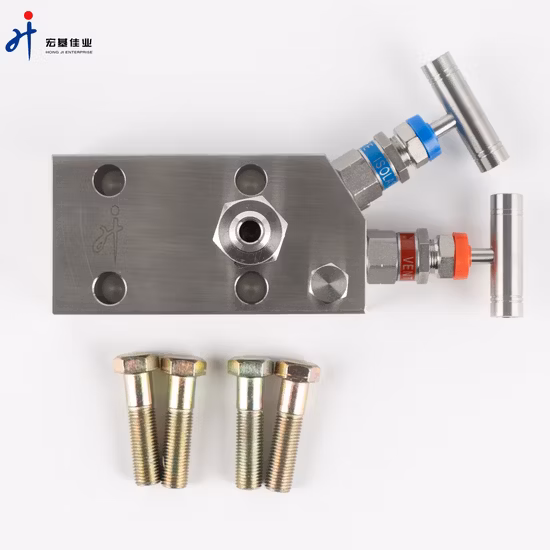

High Pressure Stainless Steel Coplanar 3 Way Valve Manifolds for Transmitter

High Pressure Stainless Steel Coplanar 3 Way Valve Manifolds for Transmitter

Overview Product Description Product Introduction Pressure 6000 psig for medium pressure seriesPressure 10000 psig for h
Overview
Basic Info.
Media Temperature Normal Temperature
Nominal Pressure 3000-10000psi
Manufacturing Process Forged
Transport Package Foam Bag, Carton Case, Wooden Case
Specification 1/2”
Trademark YAD
Origin Zhejiang, China
Production Capacity 6000PCS/Month
Product Description

Product Description

Product Introduction

  1. Pressure 6000 psig for medium pressure seriesPressure 10000 psig for high pressure series
  2. Temperature from -65°F to 300°F ( -54°C to 150°C ) with PTFE packingTemperature from -65°F to 1200°F ( -54°C to 649°C ) with graphite packing
  3. Safe union-bonnet constitution
  4. Back seating design protects the packing in fully open position
  5. Panel mountable
  6. Packing below stem thread isolates the thread lubricants from the media
  7. Non-rotating stem tip
  8. 100% factory tested

High Pressure Stainless Steel Coplanar 3 Way Valve Manifolds for Transmitter


Product Parameters
Product name3 Way Valve Manifolds
MaterialA105, SS304, SS316, 2205 2507 etc..
Size1/2"
Nominal pressure3000-10000PSI
Manufacturing processForged
Thread standardNPT, BSPP, BSPT, G, PT, DIN2999 etc..
Applicable mediumOil, gas, water, or other medium
Payment termStock products 100% payment before shipping out. In generally, 30% deposit and 70% balance against B/L copy, L/C is also acceptable.
PackagingEach one in poly bag and small box, then in export wooden case
Other detail
  1. Material test report
  2. Testing to guarantee the system
  3. Specified specification available upon request
  4. Quality assurance
  5. Free sample can be sent to test before place an order, freight fee by customer.

Product Show

Company Profile

High Pressure Stainless Steel Coplanar 3 Way Valve Manifolds for Transmitter

Yadeng valve group Co., ltd is one of the earliest manufacturers which produce connector, valve and high pressure pipe fittings. Now our company has 1100 sets of CNC equipment and 1287 employees, with nearly 30 years of manufacturing experience and excellent quality, has developed into a well-known enterprise in the industry. The company has the right to import and export. We specialize in the production of tube fittings, weld fittings and flaring fittings, Forged steel high pressure pipe fittings, instrument piping accessories, needle valve, manifold valve, high temperature and high pressure power station valve, American standard valve etc., also undertake the processing of non-standard products. The company strictly follows the ISO9001 quality system, TS and CE certification, ensure products are up to standard and meet customer requirements. Products are manufactured in accordance with API/ASME/ANSI/JIS/DIN/GB/JB standards. We stick to the enterprise tenet: Good quality ensures company survival, and technology innovation accelerates our continuous development. Our company promises: Reasonable price, fast delivery time, satisfactory after-sales service. We sincerely hope we can have a chance to cooperate with you for our mutual benefits, if you have any requirements, please feel free to contact us.

High Pressure Stainless Steel Coplanar 3 Way Valve Manifolds for Transmitter

High Pressure Stainless Steel Coplanar 3 Way Valve Manifolds for Transmitter

High Pressure Stainless Steel Coplanar 3 Way Valve Manifolds for Transmitter

FAQ

1. Q: How about the surface finishing ? A: valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be confirmed by customer's requirement. 2. Q: Can you customized the products? A: Yes, we have professional R&D team, we supply customized products to customer 3. Q: If free sample available before place order ? A:Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers. 4. Q: Is there any MOQ provide ? A:Our standard products MOQ will be ok to be 20pcs each size,for special custom by customer it will be check detail. 5. Q: Our standard export packing ? A:For small order: plastic package each pc to carton and then into weaving bag. Large order: plactic package into cartons,then cartons into plywood case. 6. Q: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery 7. Q: How long is your delivery time? A: Generally it is 10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity. 8. Q: Our business payment terms ? A: We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.
