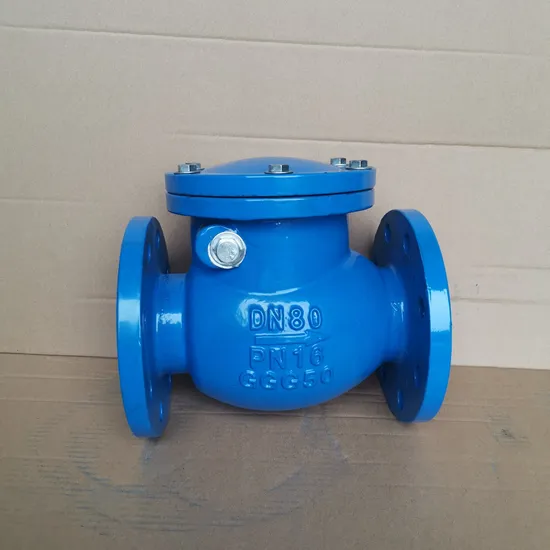

DIN 3202 F6 Ductile Iron Ggg50 Flanged RF End Swing Type Check Valve with Brass Seated

DIN 3202 F6 Ductile Iron Ggg50 Flanged RF End Swing Type Check Valve with Brass Seated

Package Size50.00cm * 40.00cm * 40.00cm Package Gross Weight50.000kg Company Introduction BONNY VALVE manufactures a wid
Send to us
Basic Info.
Model NO. DIN CHECK VALVE
Material Cast Iron
Connection Form Flange
Structure Swing
Pressure Ordinary Temperature
Function Ddcv Double Lobe
Sealing Form Seat Ring
Flow Direction Unidirection
Standard DIN
Application Industrial Usage, Water Industrial Usage
Product Name Check Valve
Design Standard DIN
Materials Cast Iron/Ductile Iron
Size DN50-DN900
Pressure Rating Pn10/Pn16
Face to Face DIN 3202-F6
Body Seat Ring Brass, Bronze, Stainless Steel
Disc Cast Iron, Ductile Iron
Disc Sealing Ring Brass, Bronze, NBR/EPDM
Stem Nut Ductile Iron Brass
Body Gasket Graphite, NBR, EPDM
Packing O Ring NBR, EPDM
Certificates Mtc/CE/ISO/SGS
Warranty Time 18 Months
OEM/ODM Welcome
Transport Package Plywood Case
Specification DN50 up to DN 900
Trademark BVC
Origin China
HS Code 8481804090
Packaging & Delivery
Package Size50.00cm * 40.00cm * 40.00cm Package Gross Weight50.000kg
Product Description

Company Introduction

BONNY VALVE manufactures a wide range of valve products including Ball,Gate,Globe,Check and Butterfly Valves for Oil,Gas&Petrochemical industries,marine,energy,water and waste among others.

Consistent product quality and best prices make BONNY VALVE a dependable choice for cast and forged valves in carbon, stainless and alloy steel materials.
BODY MATERIALS:
ALLOY STEEL:ASTM A217 WC1,WC6,WC9,C5,C12.A182 F11,F22,F5,F91......
STAINLESS STEEL:ASTM A351 CF8M, CF3M, CF8, CF8C.A182 F304,F316,F321,F347,F51,F53......

CARBON STEEL:ASTM A216 WCB, A105N,A352 LCB/LCC,A350 LF2.

BONNY VALVE maintains an extensive quality system, which complies with the requirements of major oil companies, industry standards and to ISO 9001:2015 &2014/68/EU PED CE standard.

We sell to OEM's, contractors, end-users and other distributors.
If you have a valve requirement, please give us the opportunity to assist you.

Certificates

DIN 3202 F6 Ductile Iron Ggg50 Flanged RF End Swing Type Check Valve with Brass Seated

Packing&Delivery

DIN 3202 F6 Ductile Iron Ggg50 Flanged RF End Swing Type Check Valve with Brass Seated


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory,Located in Wenzhou,China.

Q: How long is your delivery time?A: Generally it is 3-5 days if having stocks. or 30-45 days according to your quantity.Q: We are interested in your products?A: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.Q:What is your Core Products? A: Our Main Producs are all kinds of valves,like gate valve,globe valve,check valve,ball valve,butterfly valve for for Oil,Gas&Petrochemical industries,marine,energy,water and waste among others.Q:What's Warranty of your product? A: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.

DIN 3202 F6 Metal Seat swing Check Valve

DIN 3202 F6 Ductile Iron Ggg50 Flanged RF End Swing Type Check Valve with Brass Seated

Packing Details: Inner Package:bubble bags + plastic cover Outer Package:plywoodcase
Delivery Details: Generally it is 5-10 days if the goods are in stock. Or 30~45 days after receiving the payment.
